CDM® ESD. Latest generation composite material with proven quality for lead-free soldering processes.
New generation material.
Higher performances in temperature at 300 – 350 °C and improved machinability.
Excellent dimensional stability with very good mechanical characteristics.
Dissipative properties.
Excellent flux and chemical resistance.
Temperature resistant.
Laboratory tested and proven in practice at temperatures above 300 °C.
Long service life.
Excellent machinability.

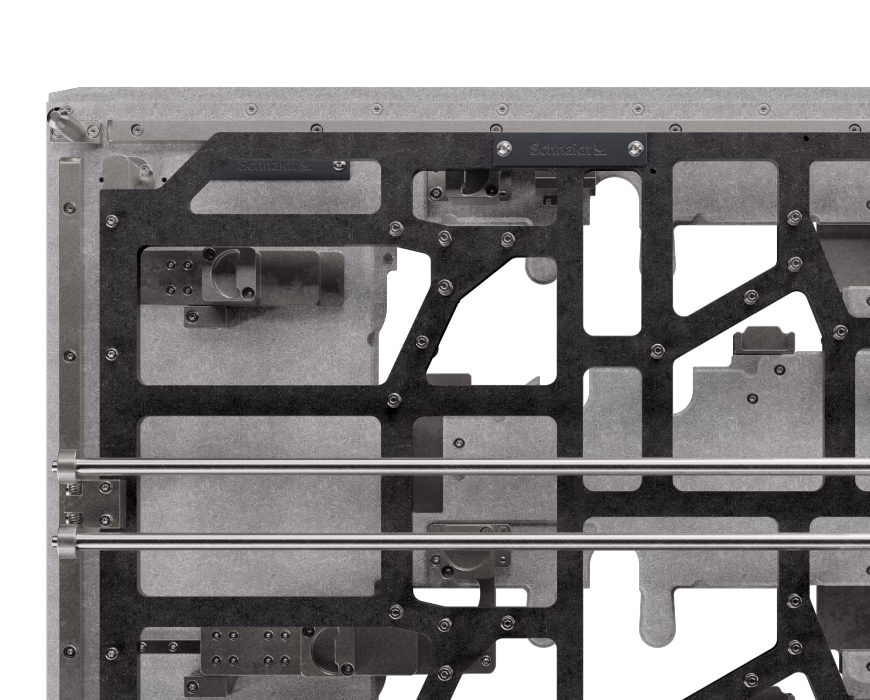

Especially for thin-walled and complex workpieces. Please feel free to contact us if you would like to draw on our expertise.

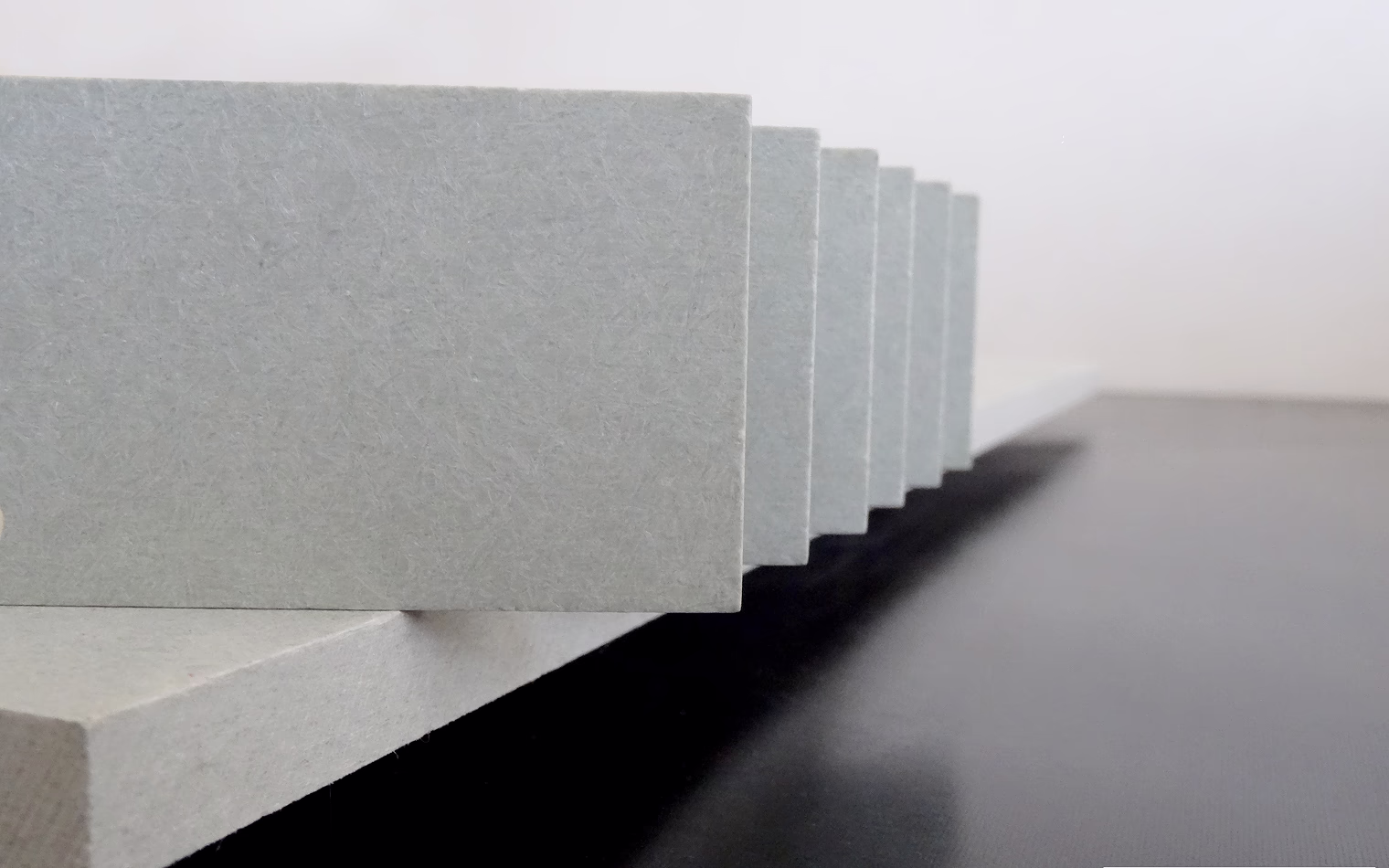

Choose between two material types with specific properties. CDM® ESD 68910N (black) for increased temperature resistance and improved machinability, and CDM® ESD 68940 (grey) for increased durability in harsh process environments.
request cut-to-sizetechnical data
In comparison.

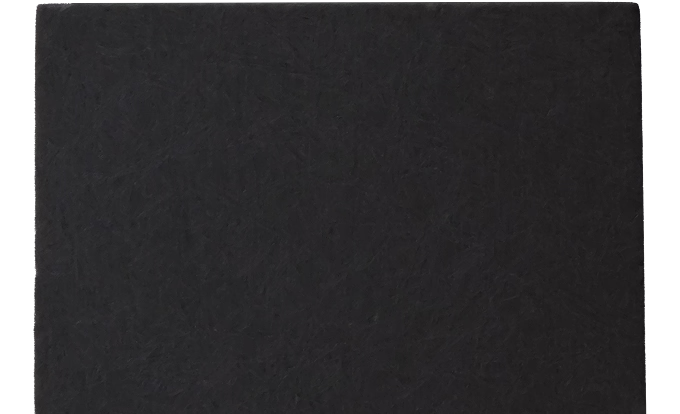

CDM® ESD 68910N
Density
1,9 g/cm3
Water absorption
< 0,15 %
Linear coefficient of thermal expansion
10.10E-6 K-1
Surface resistance
1×10⁴ – <1×10⁷ Ω
Operating temperature
300–350 °C
Available thicknesses
Other thicknesses available on request.
3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm
CDM® ESD 68940
Density
1,9 g/cm3
Water absorption
< 0,1 %
Linear coefficient of thermal expansion
10.10E-6 K-1
Surface resistance
1×105 – <1×108 Ω
Operating temperature
300–350 °C
Available thicknesses
Other thicknesses available on request.
3 mm, 4 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm
data sheet
CDM® ESD 68910N
download data sheetCDM® ESD 68940
download data sheetOrder cut-to-size
Configure your cut according to your wishes.
We will get back to you as soon as possible with a binding offer.
